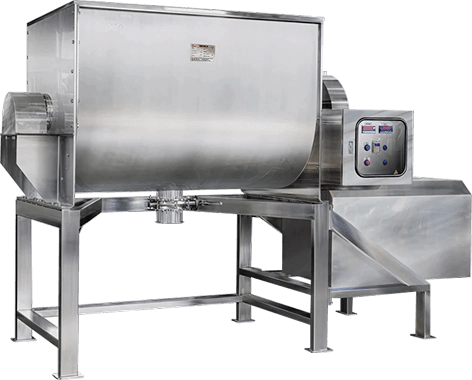

The ribbon blender is a versatile and efficient mixing machine designed for homogeneous blending of dry powders, granules, and low-viscosity pastes. Widely used in pharmaceutical and chemical processing, it ensures consistent batch quality, ease of operation, and compliance with GMP standards.
Applications:
Pharmaceuticals:
Chemicals:
Optional Features:
Advantages:
U-shaped Trough:
Ensures thorough blending with minimal dead zones.
Double Helical Ribbon Agitator:
Inner and outer ribbons move materials in opposite directions for uniform mixing.
Material of Construction:
SS304 or SS316 for contact parts, ensuring hygiene and corrosion resistance.
Discharge Valve:
Manual or pneumatic butterfly/slide gate for controlled discharge.
Drive Mechanism:
Motor with gearbox (direct or belt-pulley type) for low-noise, reliable operation.
Safety Guards and Limit Switches:
Optional features for operator safety and GMP compliance.
Easy Cleanability:
With polished internal surfaces and quick-access covers.
Technical Specification
| Specification | Description |
|---|---|
| Capacity | SPE-RB-50 TO SPE-RB-10,000 LTRS |
| Material of Construction | S.S / M.S |
| Mixing Speed | 30–60 RPM |
| Motor Power | 2–30 HP |
| Agitator Type | Double Helical Ribbon |
| Discharge Valve | Pneumatic / Manual |
| Trough Shape | U-Shaped |
| Trough Cover | Provided |
| Loading Type | Top Loading |
| Mixing Time | 10–30 Minutes |
| Drive Type | Gear Box / Direct Drive |
| Operating Temperature | Up to 120°C |
