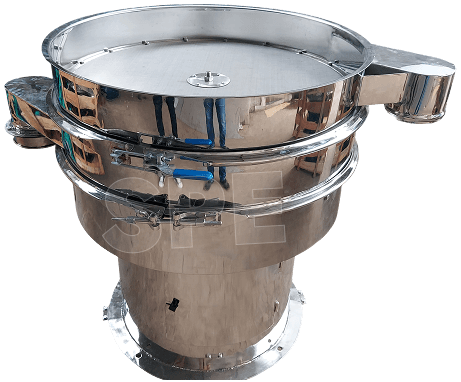

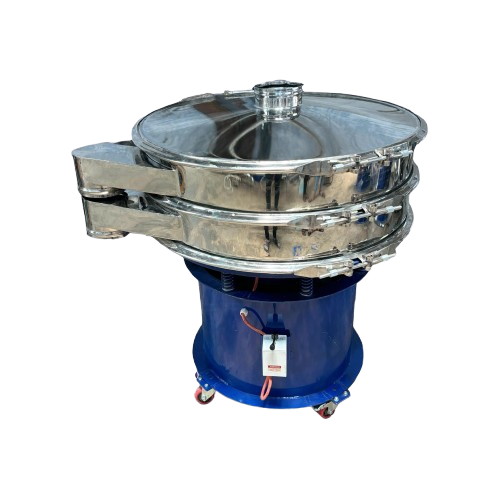

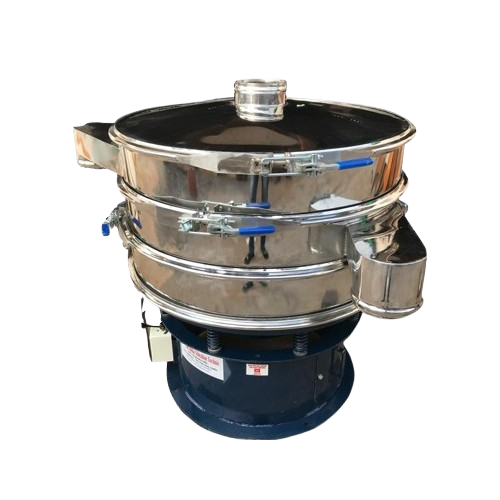

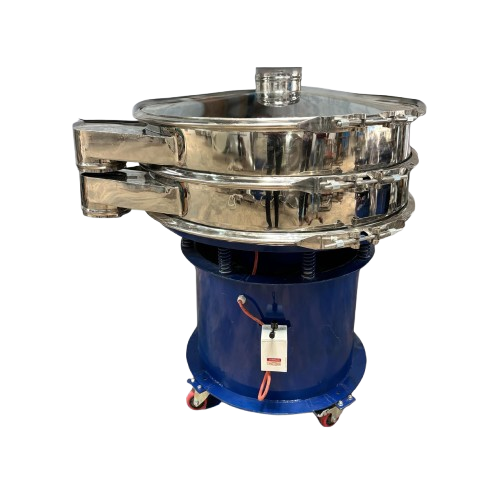

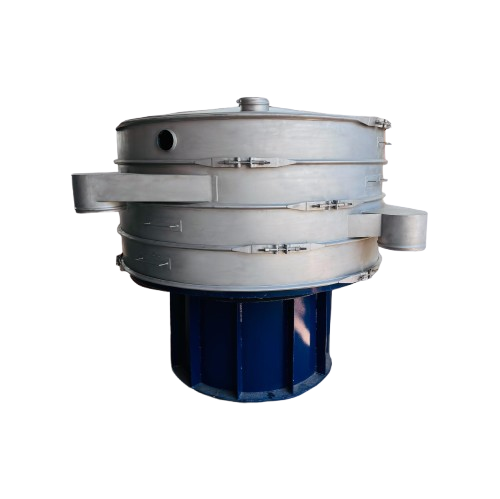

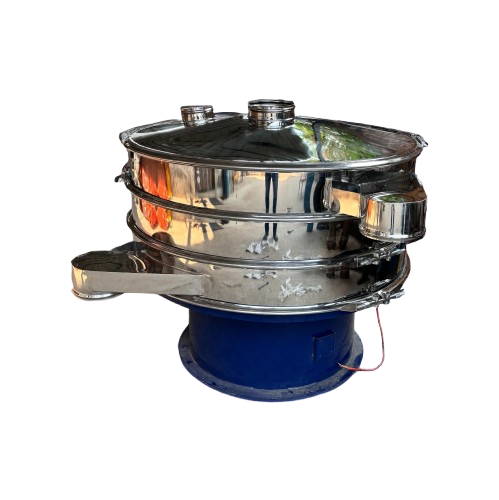

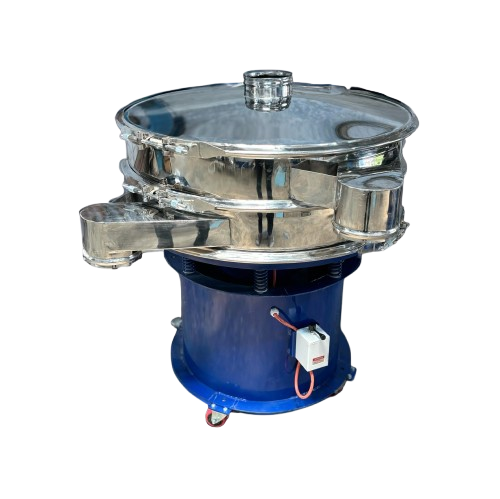

A Vibro shifter, also known as a vibrating shifter or sieving machine, is used to separate particles by size through vibratory motion. It is widely applied in the pharmaceutical, food, chemical, and cosmetic industries for grading, de-dusting, and filtering powders or liquids.
Working Principle
The Vibro shifter operates on the gyratory motion principle. A vibratory motor creates high-frequency vibrations, which are transmitted to the screen deck. As the material is fed onto the screen, it gets separated by particle size — finer particles pass through the mesh, while oversized materials remain on the screen.
Applications
Features:
Vibratory Motor:
Provides the vibration needed for the sifting process.
Sieve/Screen Decks:
One or more mesh screens to classify material based on size.
Screen Frame:
Holds the sieve in place; often equipped with gaskets for sealing.
Clamping Rings:
Secure the frames and ensure tight assembly.
Base Frame:
Provides structural support and houses the motor.
Outlet Ports:
For coarse and fine material discharge.
Dust Cover (optional):
Prevents contamination and maintains cleanliness.
Technical Specification
| Model | Screens | Screen Dia | Capacity/Hour | Charging Height | Discharging Height | Electric Motor |
|---|---|---|---|---|---|---|
| SPE - VS - 20" | S.S 316 / 304 | 500 mm | 20–70 KGs/Hr. | 900 mm | 420 mm | 0.5 HP |
| SPE - VS - 24" | S.S 316 / 304 | 610 mm | 20–140 KGs/Hr. | 900 mm | 420 mm | 0.5 HP |
| SPE - VS - 30" | S.S 316 / 304 | 750 mm | 30–250 KGs/Hr. | 950 mm | 420 mm | 0.5 HP |
| SPE - VS - 36" | S.S 316 / 304 | 910 mm | 150–300 KGs/Hr. | 1000 mm | 500 mm | 1 HP |
| SPE - VS - 48" | S.S 316 / 304 | 1220 mm | 200–500 KGs/Hr. | 1050 mm | 500 mm | 2 HP |
| SPE - VS - 60" | S.S 316 / 304 | 1520 mm | 300–800 KGs/Hr. | 1200 mm | 500 mm | 2 HP |
| SPE - VS - 72" | S.S 316 / 304 | 1828 mm | 300 KGs – 1 T/Hr. | 1200 mm | 500 mm | 3 HP |
